Περιγραφή

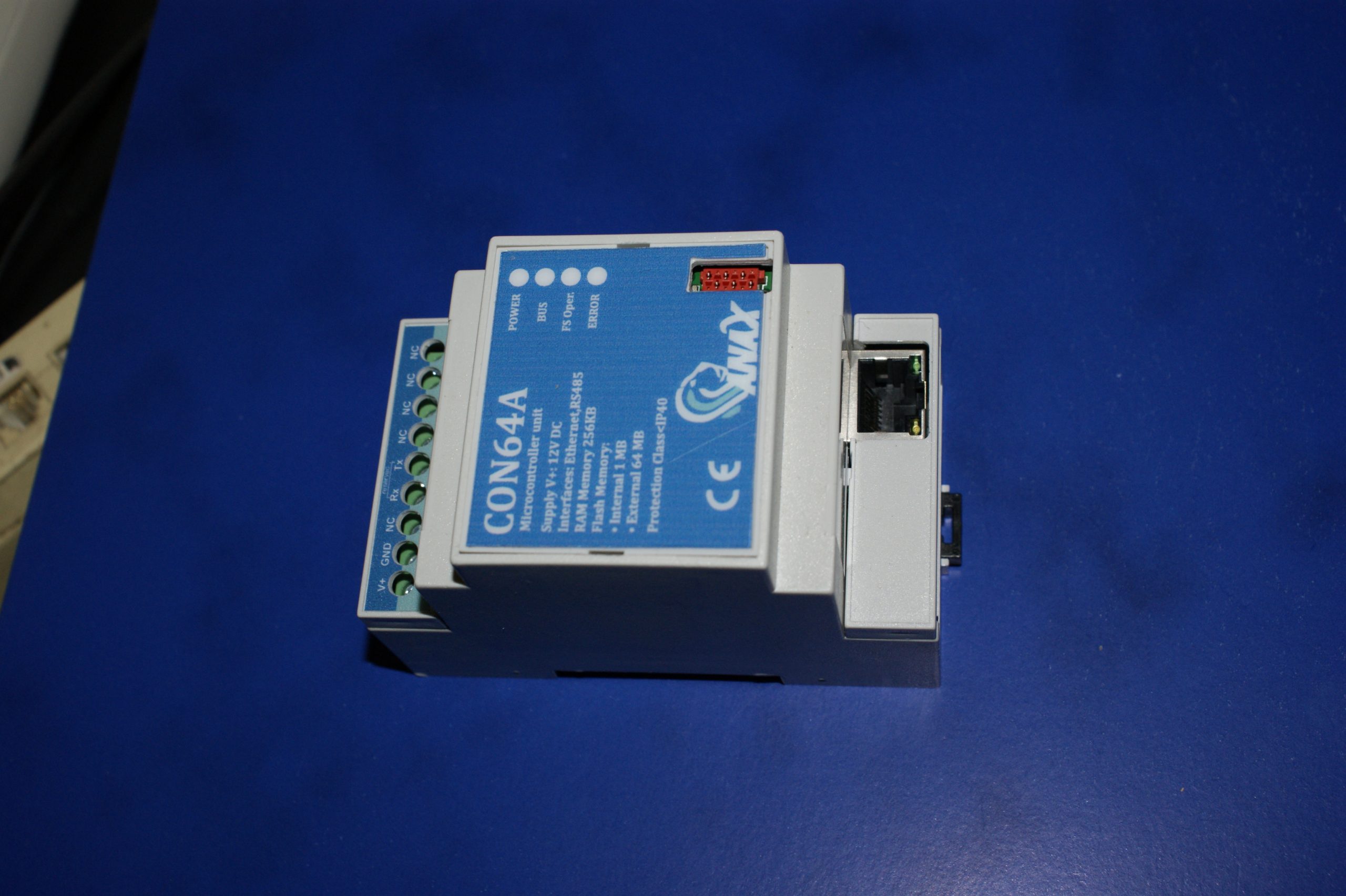

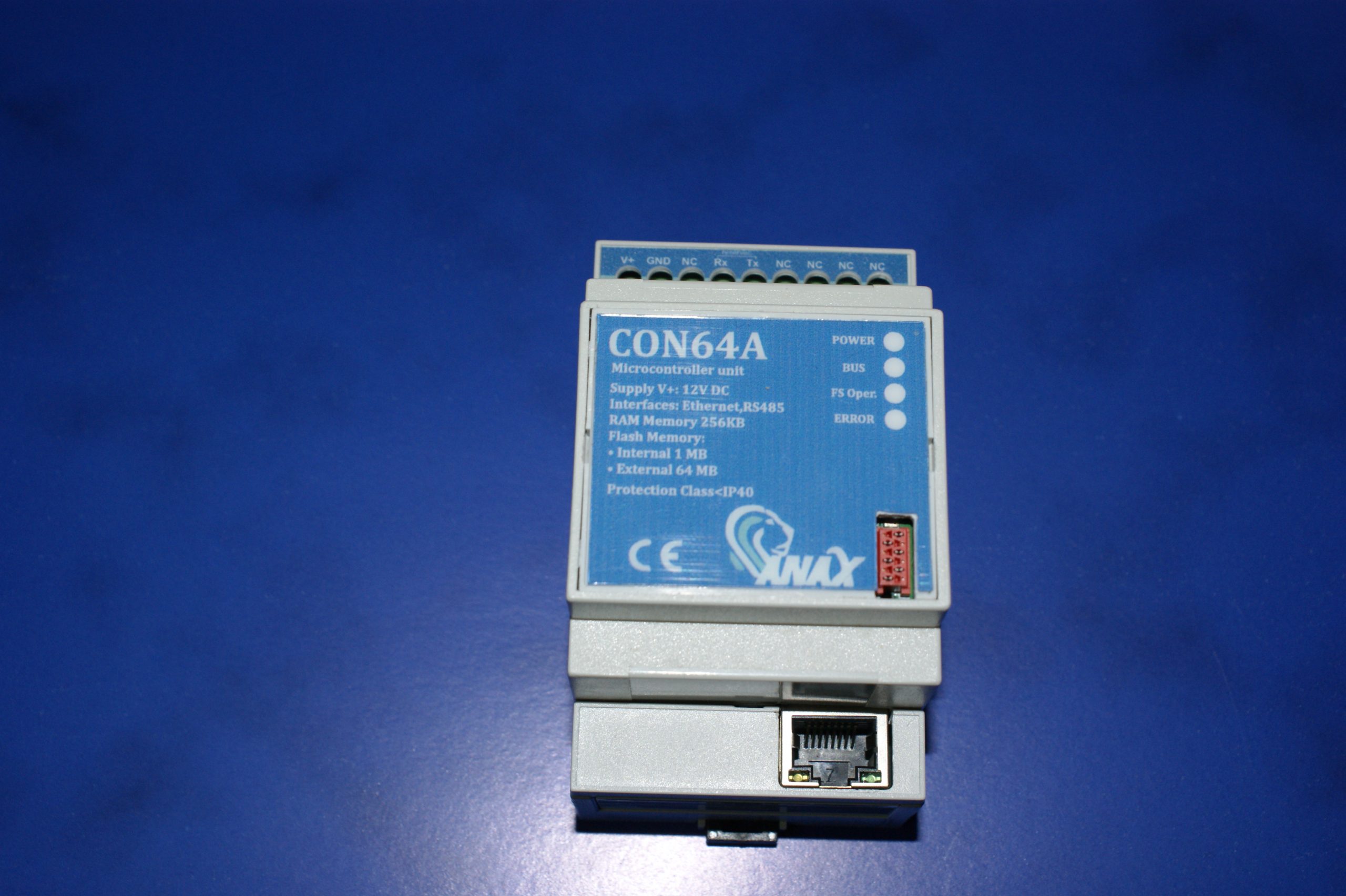

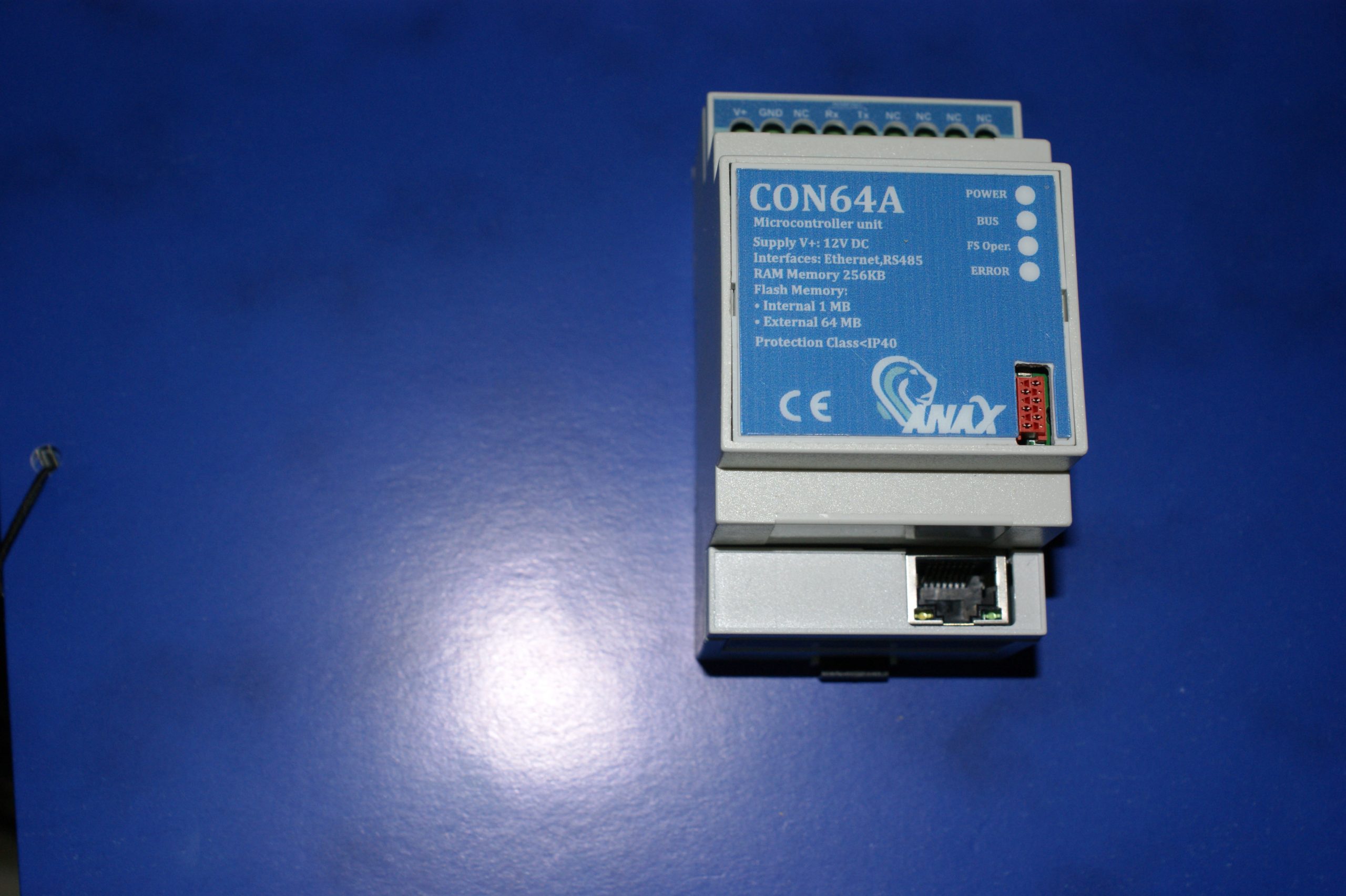

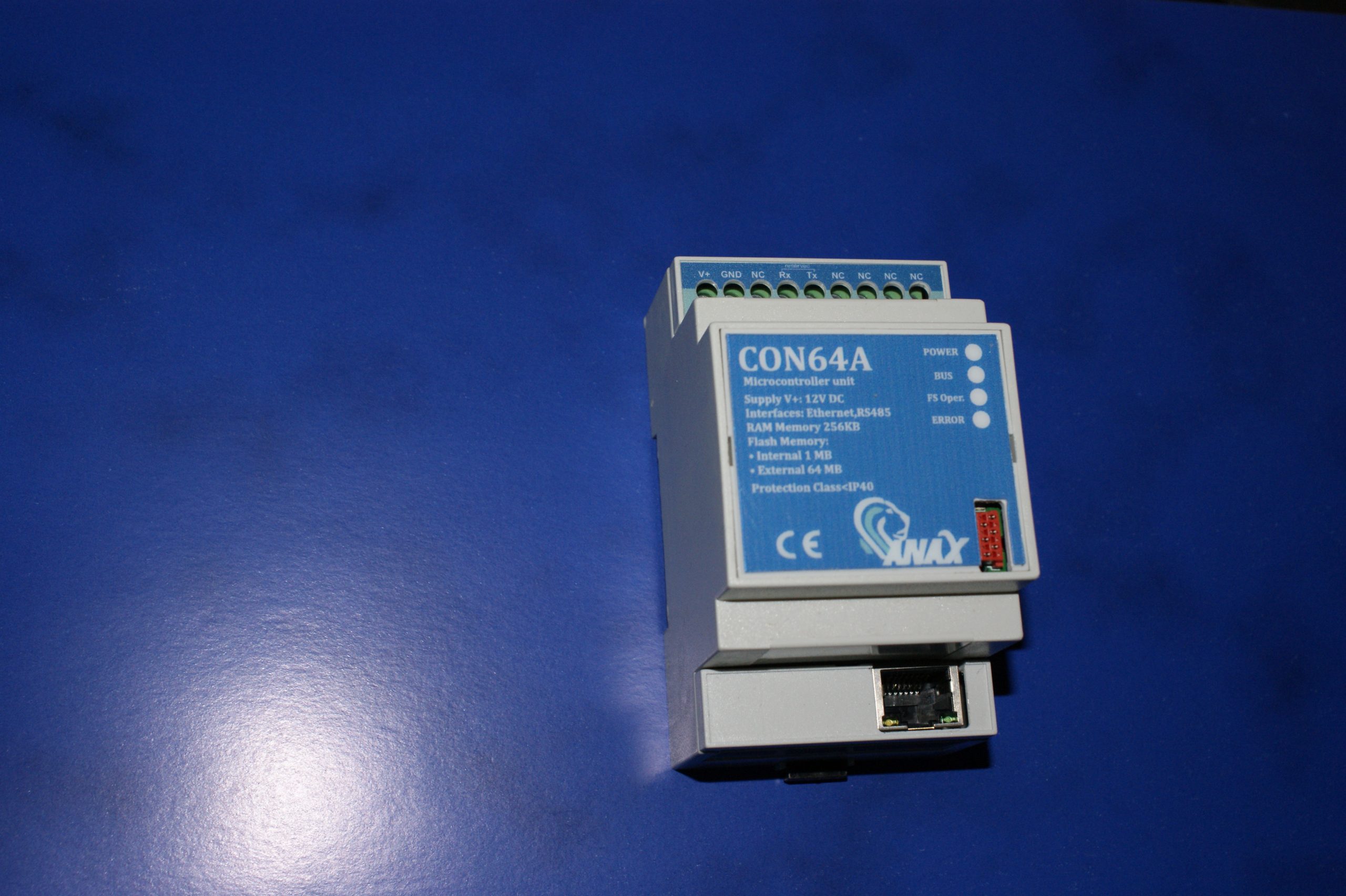

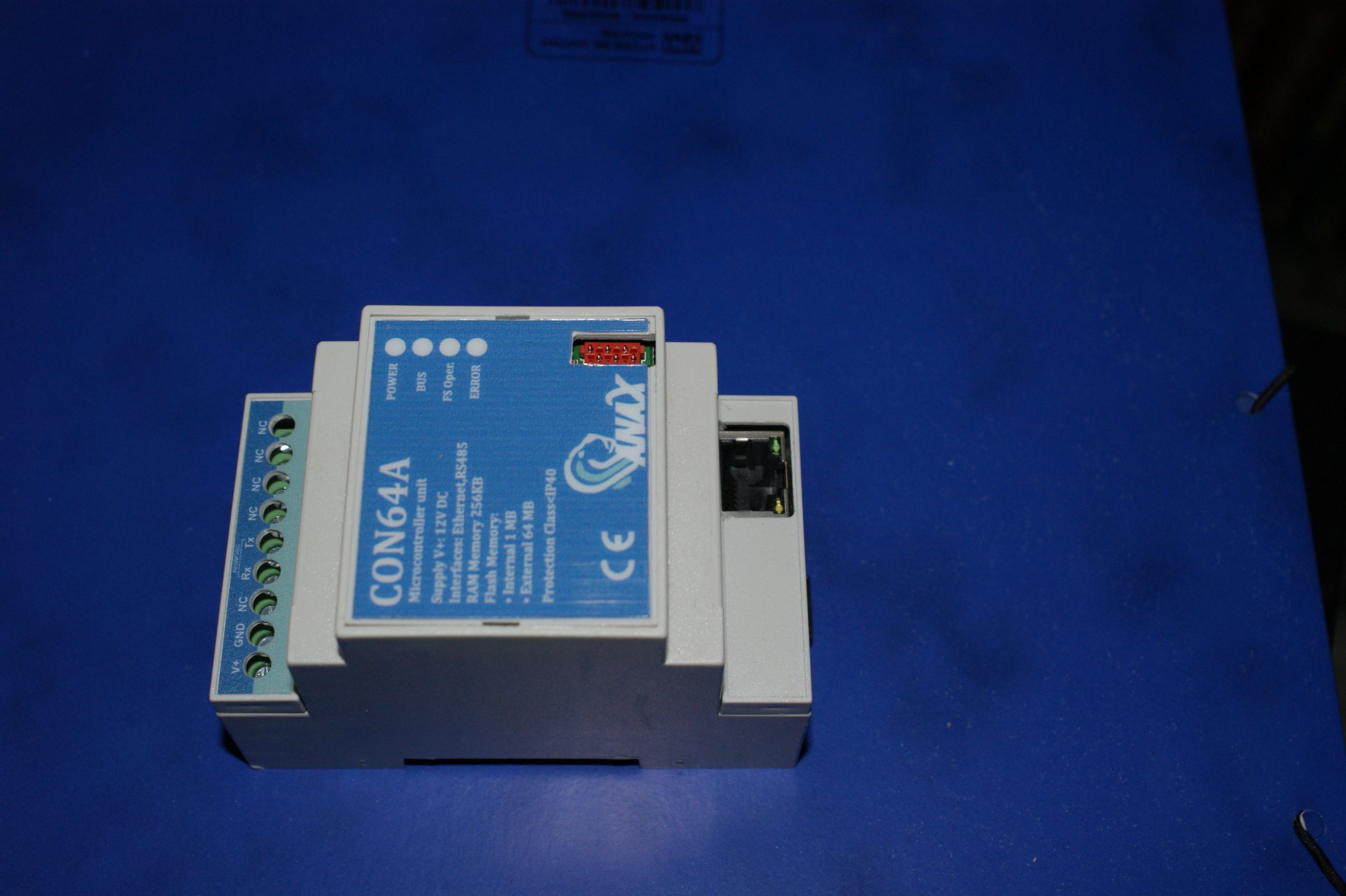

Programmable Logic Controller CON64A, designed for small and medium-size installations.
Up to 64 integrated inputs and outputs, auto addressed. Maximum cable length 1000 m with a common GND.
Technical Details
- Clock Speed: 168 MHz
- Supply V+:12 VDC
- CPU: STM32F437 Arm Cortex-M4 core
- Ethernet: 100 MHz, RMII, half-duplex
- RS485 Interface
- RAM Memory: 256 KB
- Flash Memory:
- Internal: 1 MB
- External: 64 MB
Housing:
- Dimensions (WxHxD): 53 x 90 x 58 mm
- Material: Plastic
- Mounting: on standard mounting DIN rail EN 60715 TH35
- Protection Class: <IP40

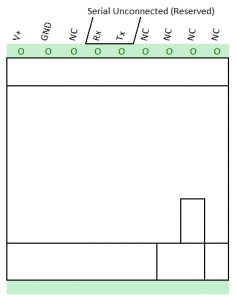

- Connection : removable spring terminals
- Mounting position : Optional
Description :
Communication : Via Ethernet using HTTP/POST and GET requests.
Storage : The micro-controller contains a small database written in json format for the ease of exchanging data, keeping a small memory footprint. The storage, which user can use is up to 55 MB for both micro-python algorithms and data.
Interface programming language : An optimized version of micro-python is the main language used for programming. Using micro-python and the Cortex-M CMSIS libraries, users can actually take advantage of assembly commands as well.
Re-programmability : Easy to upgrade via Ethernet. So life time support is available.
RTOS : The whole project is based upon RTOS, so that concurrent multitasking is supported for the micro-python algorithms.
