Περιγραφή

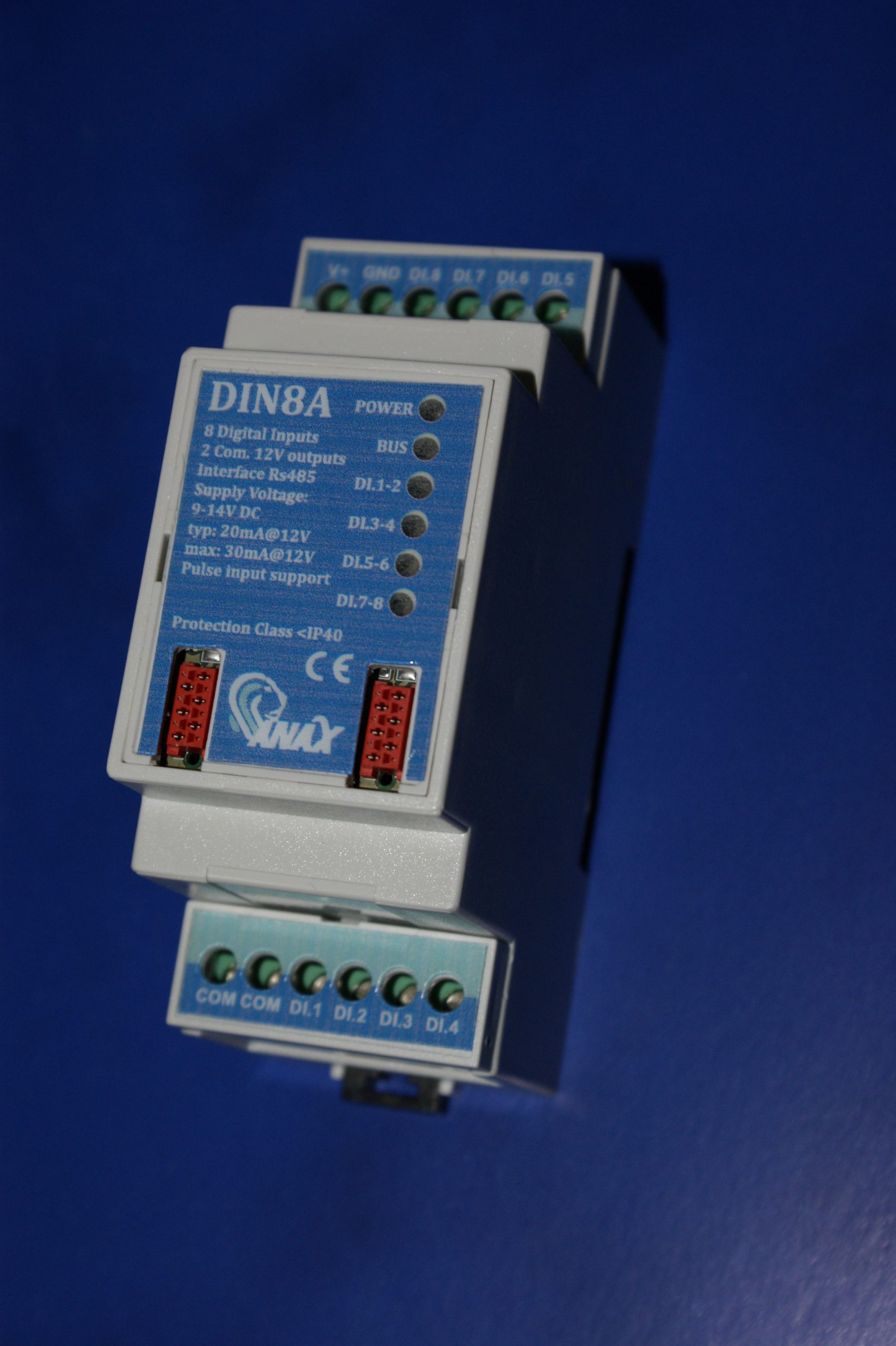

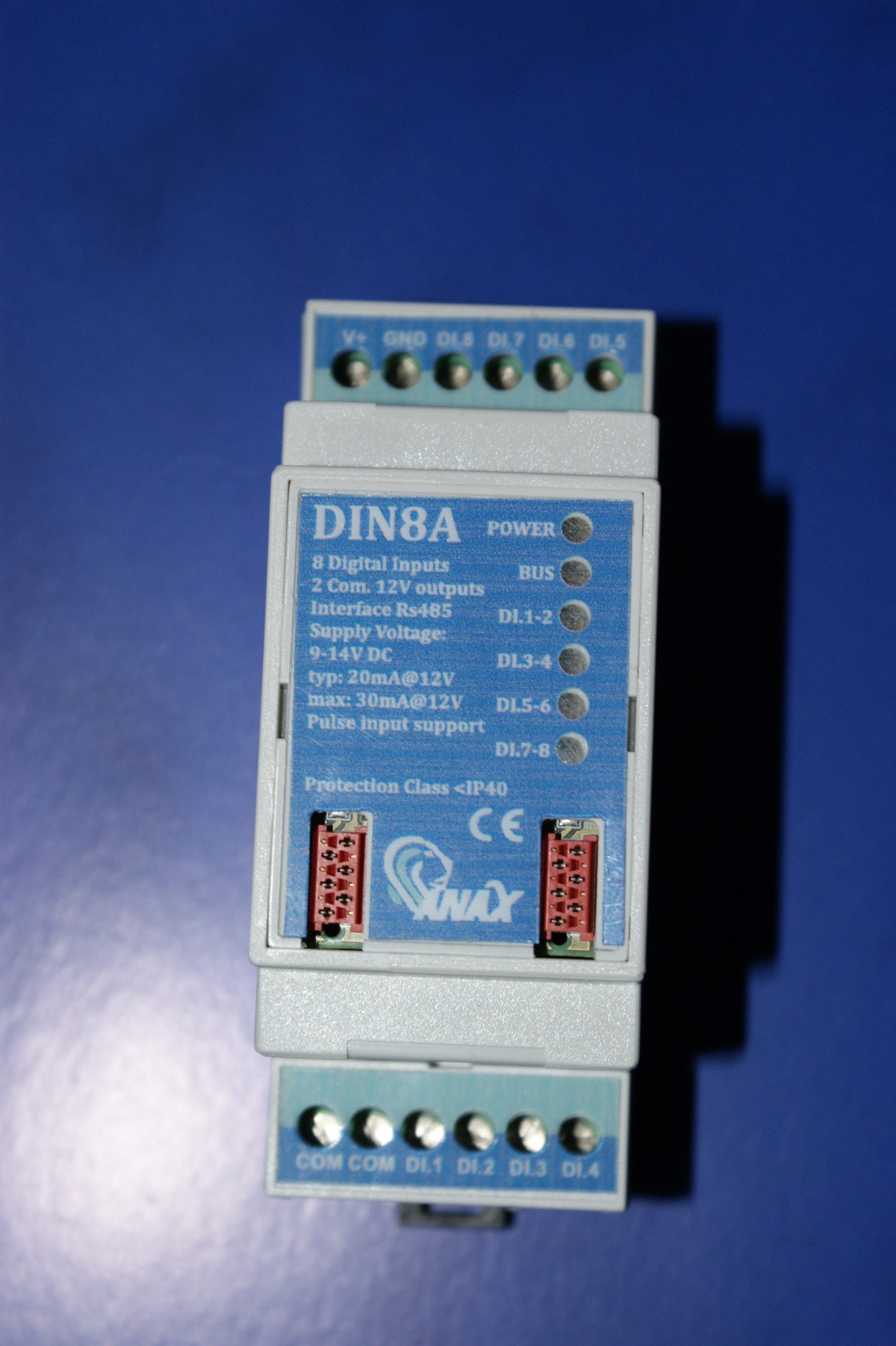

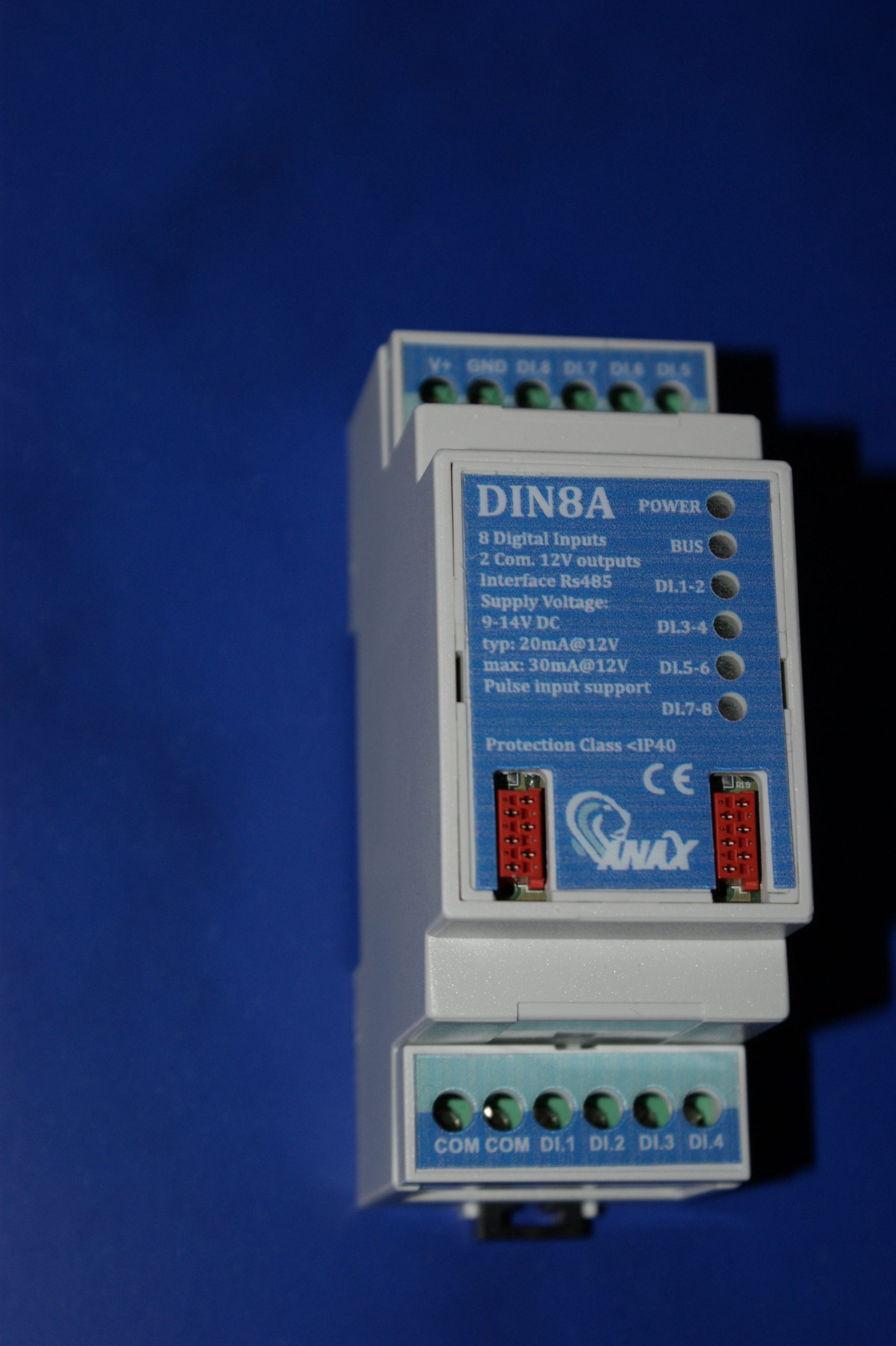

DIN8A Digital Input module, auto addressed with 8 onboard integrated Digital Inputs.
Technical Details
- 8 onboard integrated Digital Inputs
- 2 Common 12V powered outputs
- RS485 Interface
- Supply Voltage: 9-14 V
- Typ: 20mA @ 12V
- max: 30mA @ 12V
Additional Specifications:
- Configurable Pulse input support
- CPU: STM32F100 Arm Cortex-M3 core
- 2 orange LEDs (Power, Comm.)
- 4 green LEDs (diagnostics per 2 Inputs)
Housing:
- Dimensions (WxHxD): 36 x 90 x 58 mm
- Material: Plastic
- Mounting: on standard mounting DIN rail EN 60715 TH35
- Protection Class: <IP40
- Connection : removable spring terminals
- Mounting position : Optional
Description :
DIN8A module brings 8 integrated Inputs and 2 Common 12V powered Outputs. The Outputs are used to power in a desired external contact and return back with the common voltage to each digital Input. The typical usage refers to relay type contacts.
