Description

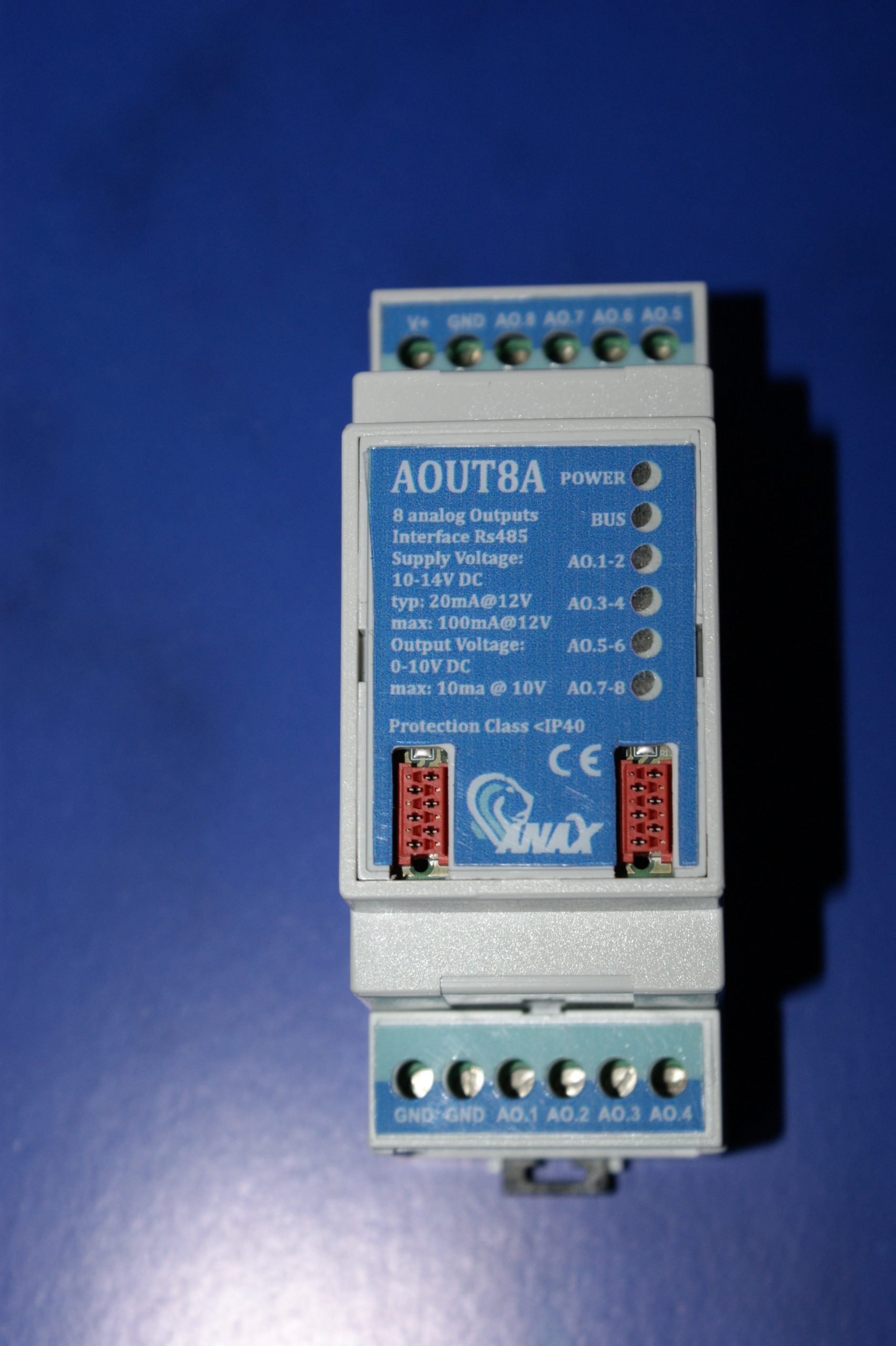

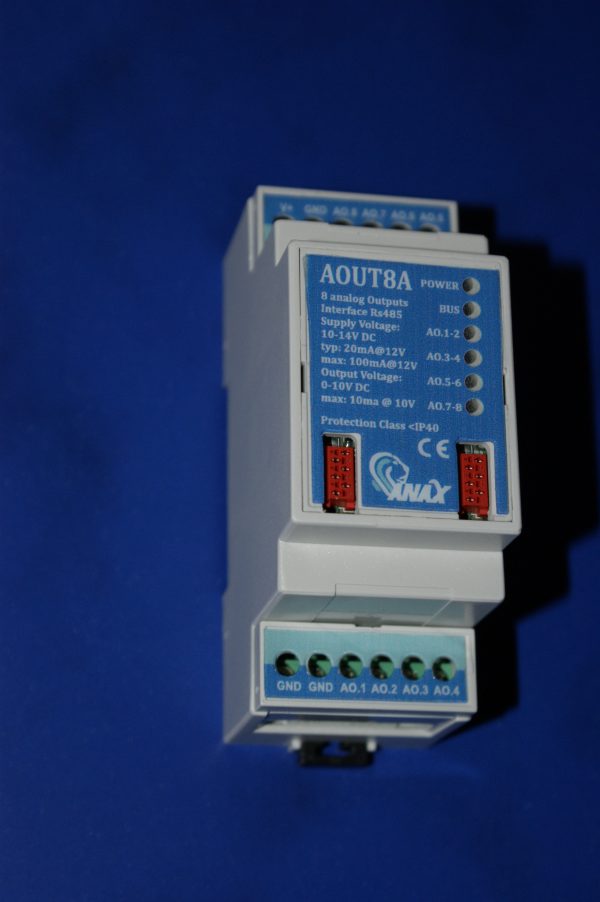

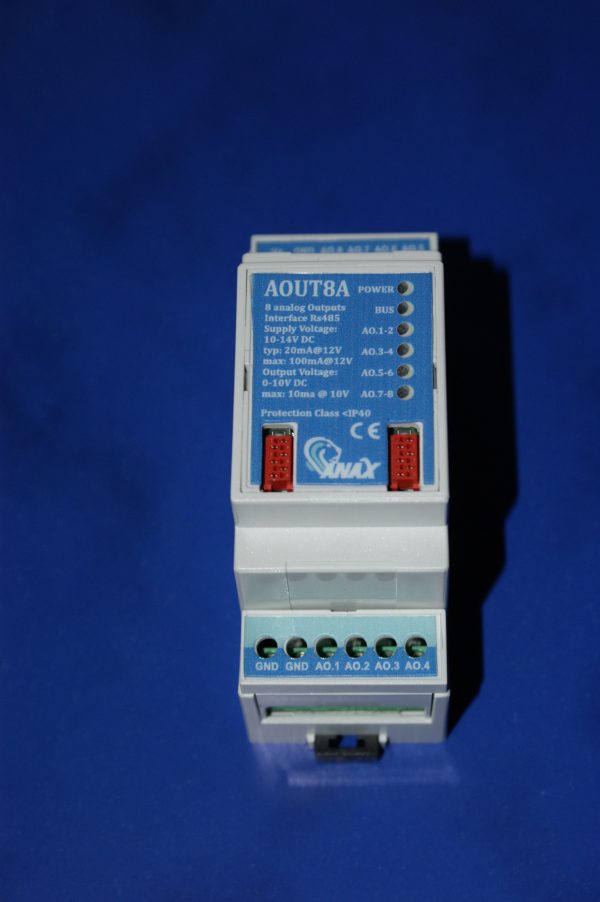

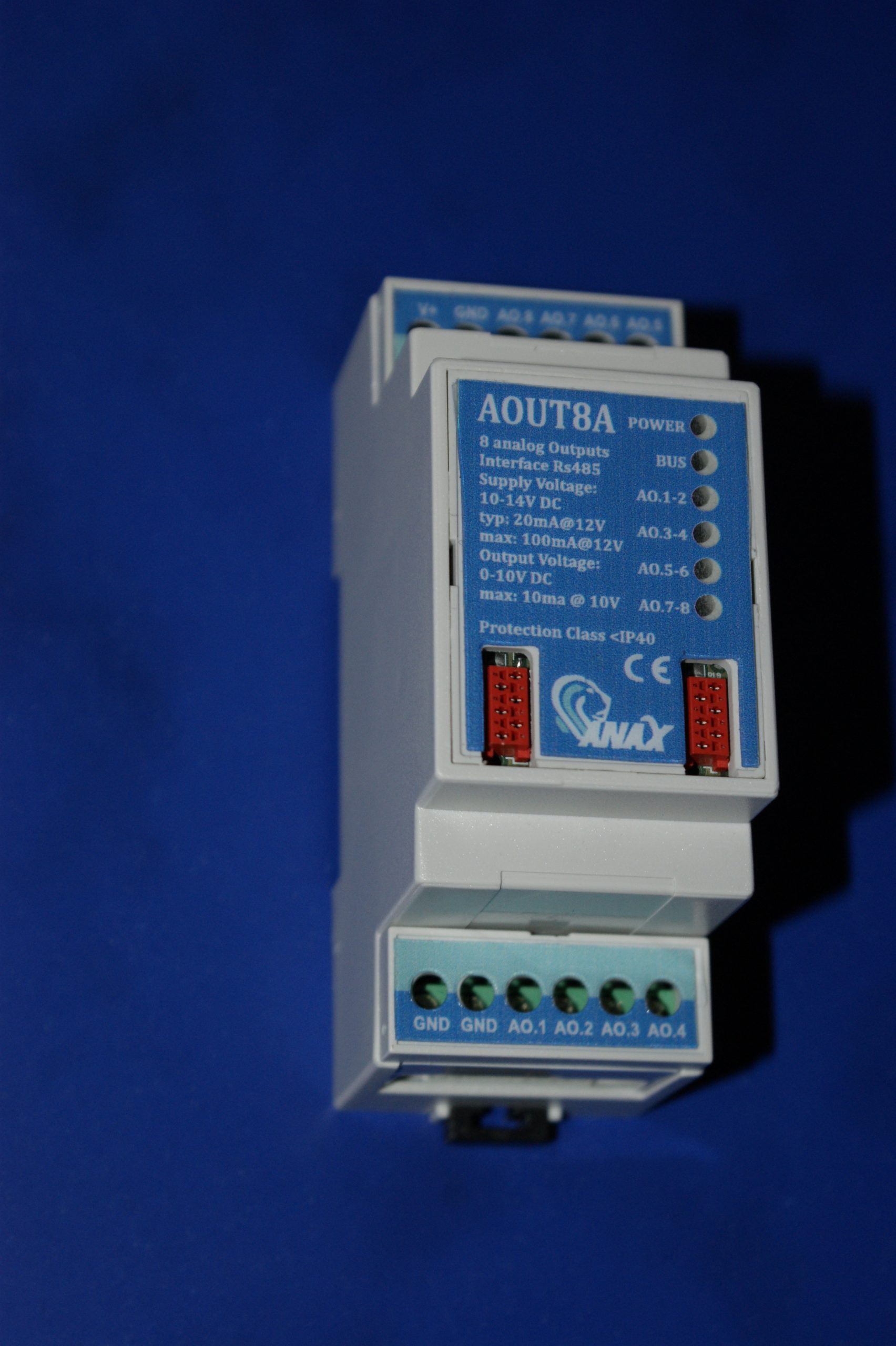

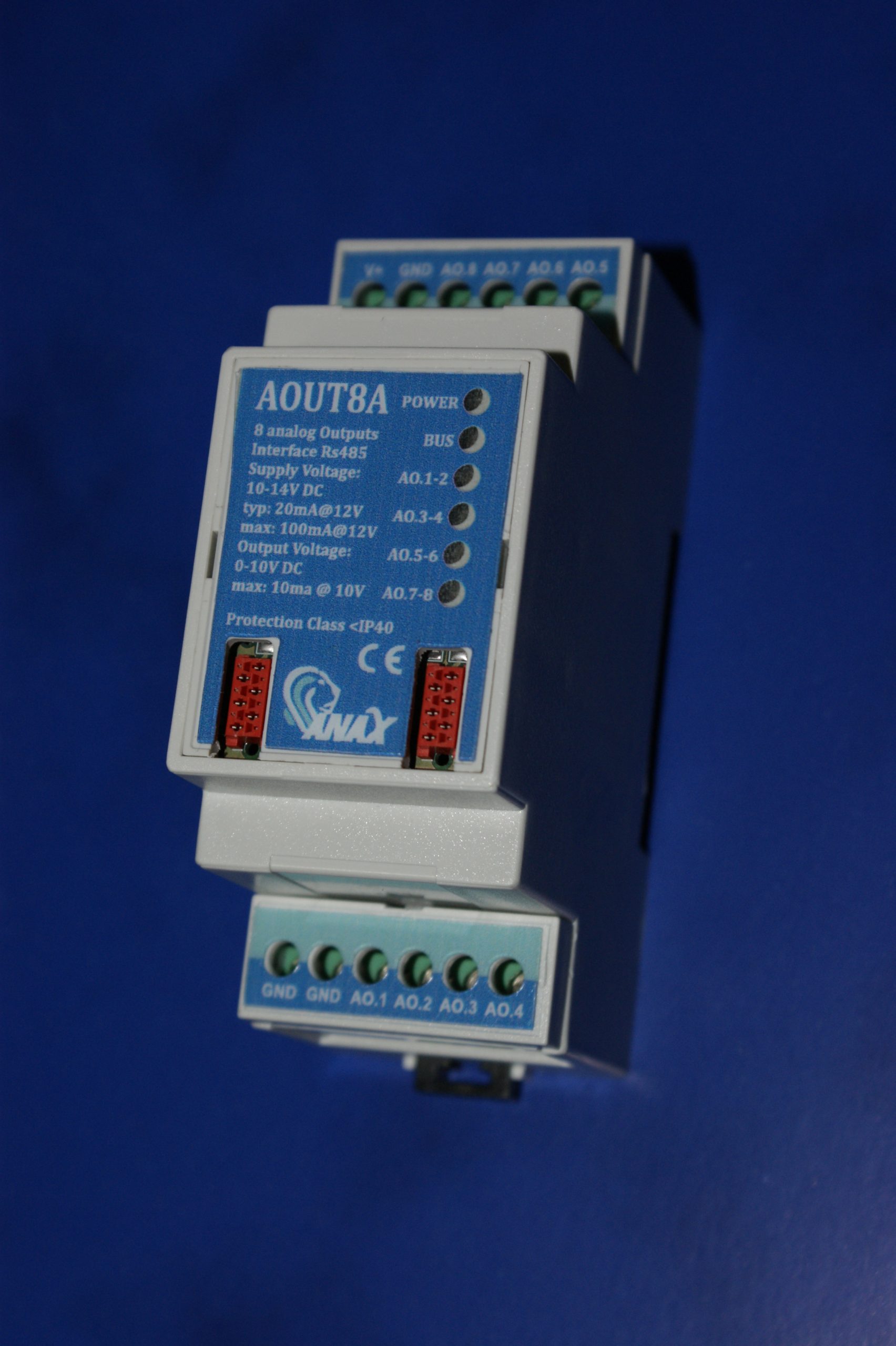

Analog Output module auto addressed, with 8 onboard integrated Analog Outputs.
Technical Details
- 8 onboard integrated Analog Outputs
- RS485 Interface
- Supply Voltage: 10-14 V
- Typ: 20mA @ 12V
- max: 100mA @ 12V
Output Specifications:
- Voltage : 0 – 10 V
- max: 10mA @ 10 Volt per output
Additional Specifications :
- CPU: STM32F100 Arm Cortex-M3 core
- 2 orange LEDs (Power, Comm.)
- 4 green LEDs (Diagnostics per 2 Outputs)
Housing :
- Dimensions (WxHxD): 36 x 90 x 58 mm
- Material: Plastic
- Mounting: on standard mounting DIN rail EN 60715 TH35
- Protection Class: <IP40

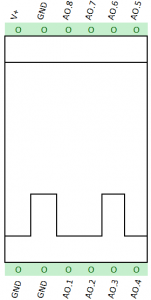

- Connection : removable spring terminals
- Mounting position : Optional
