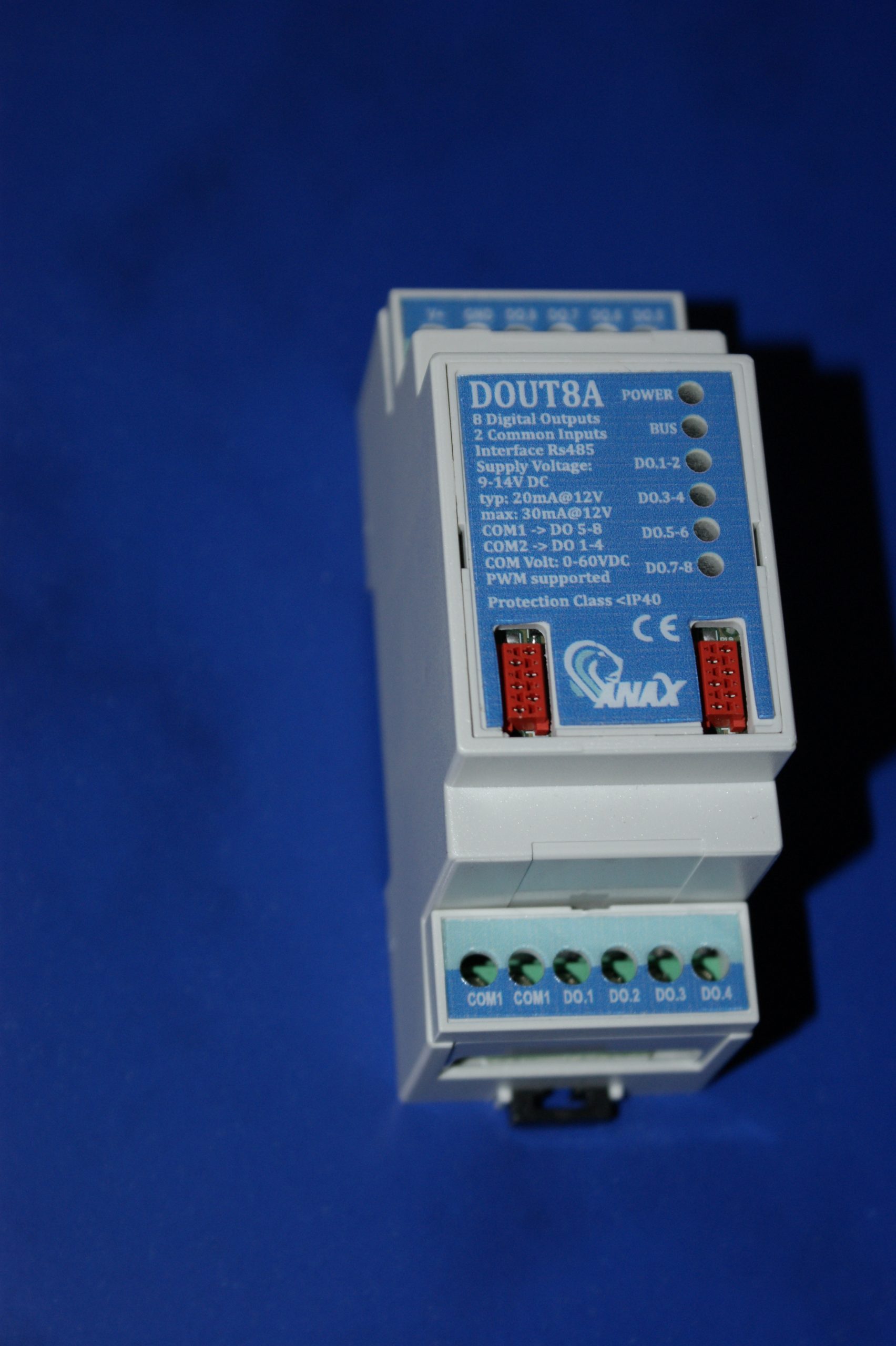

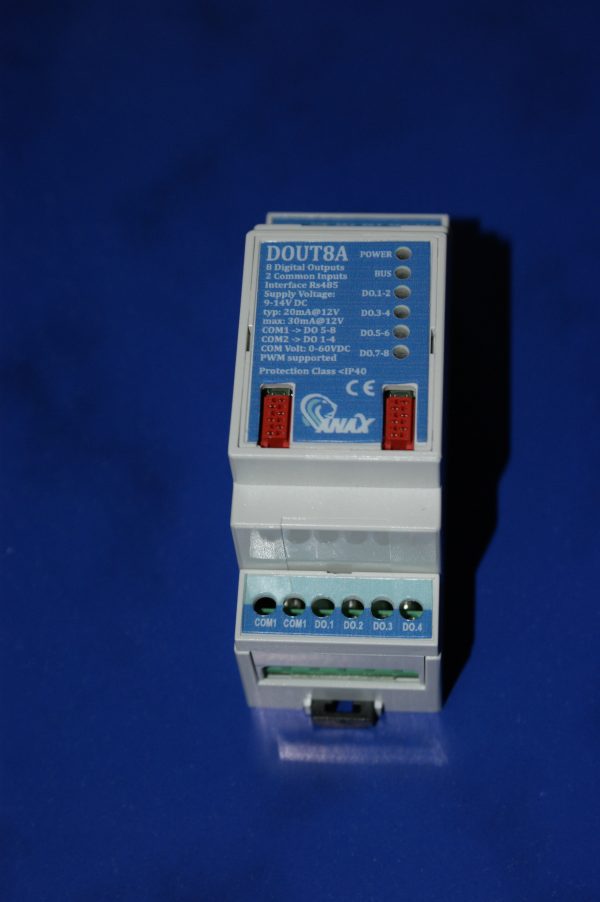

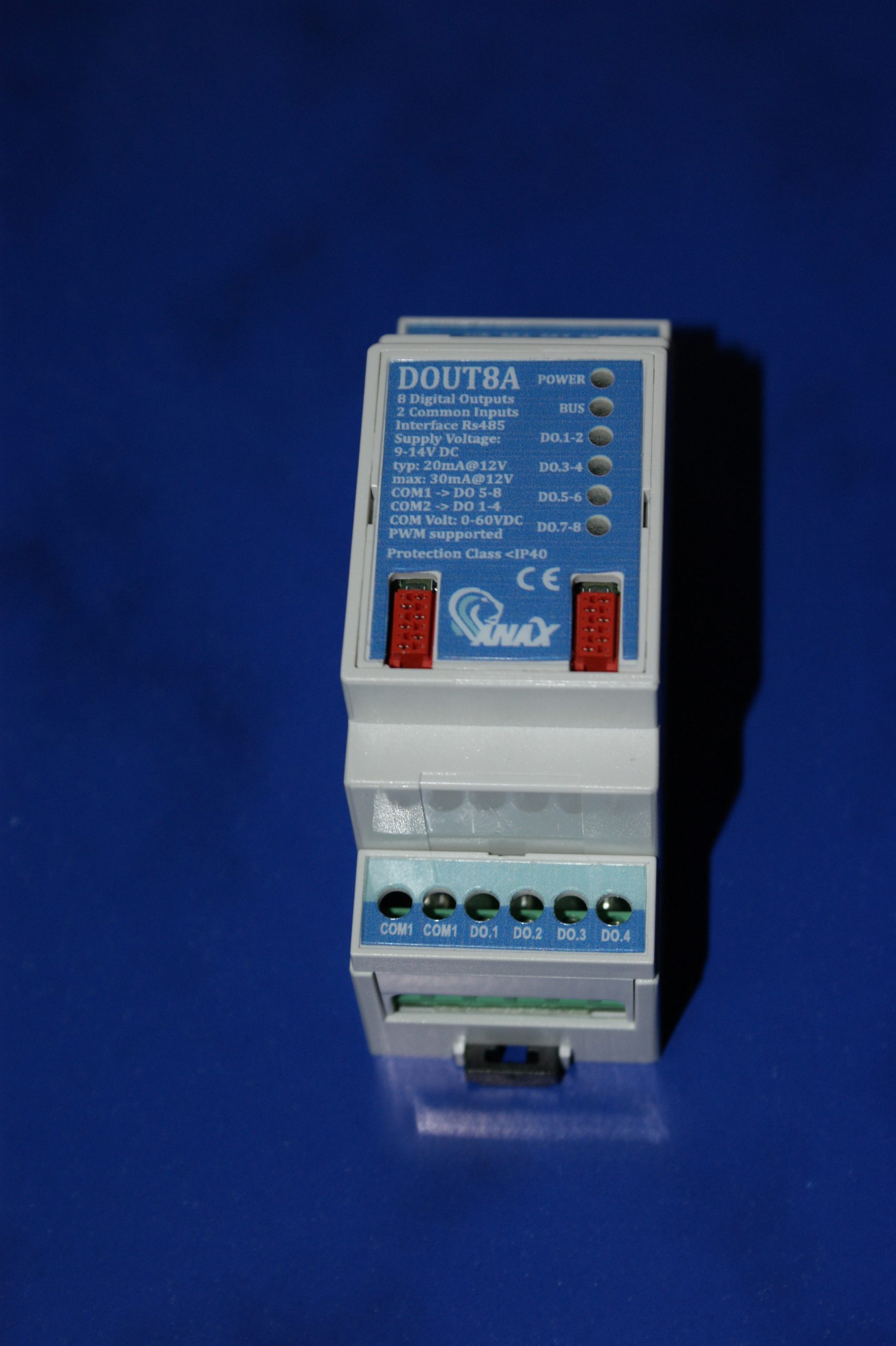

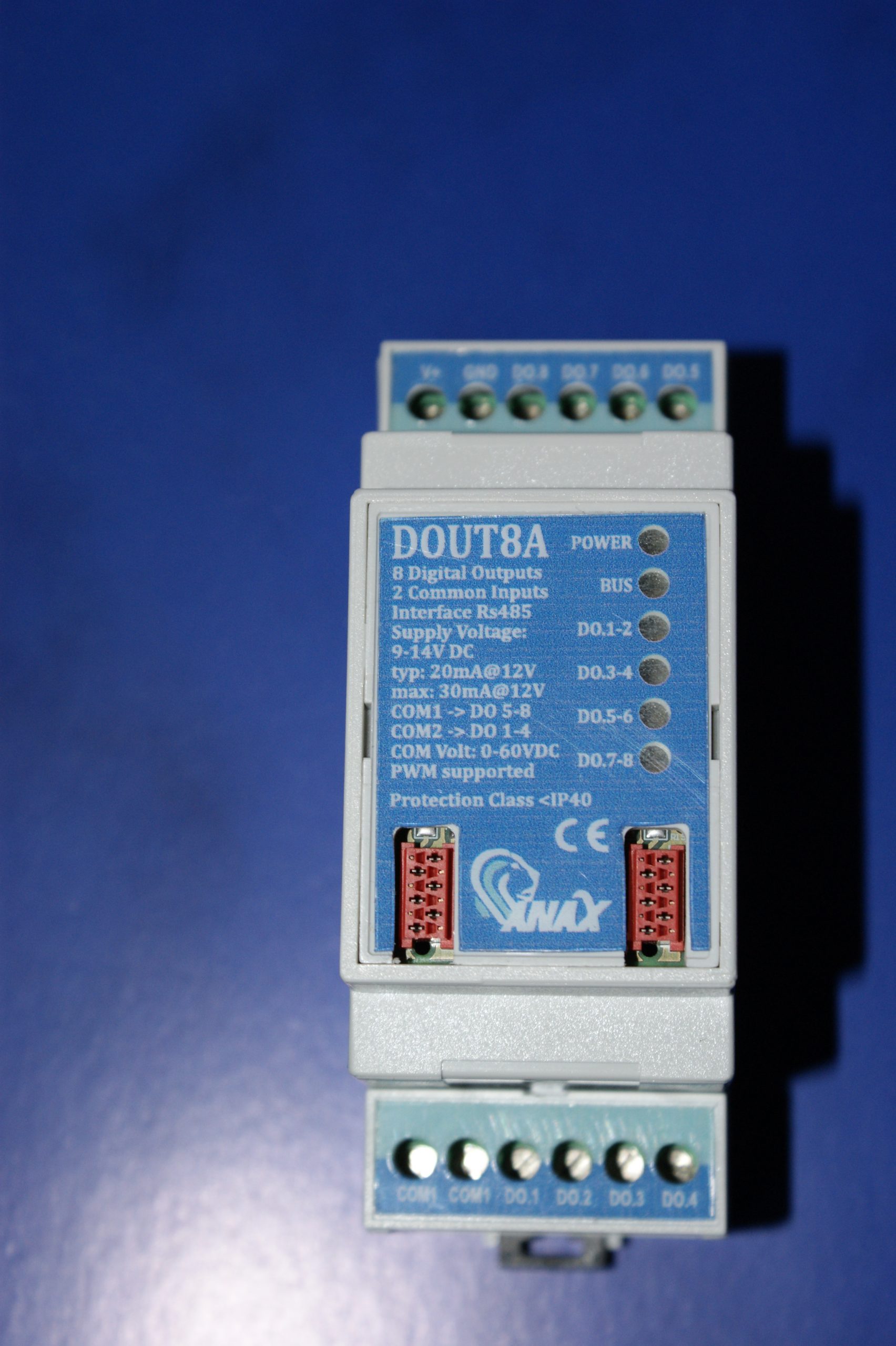

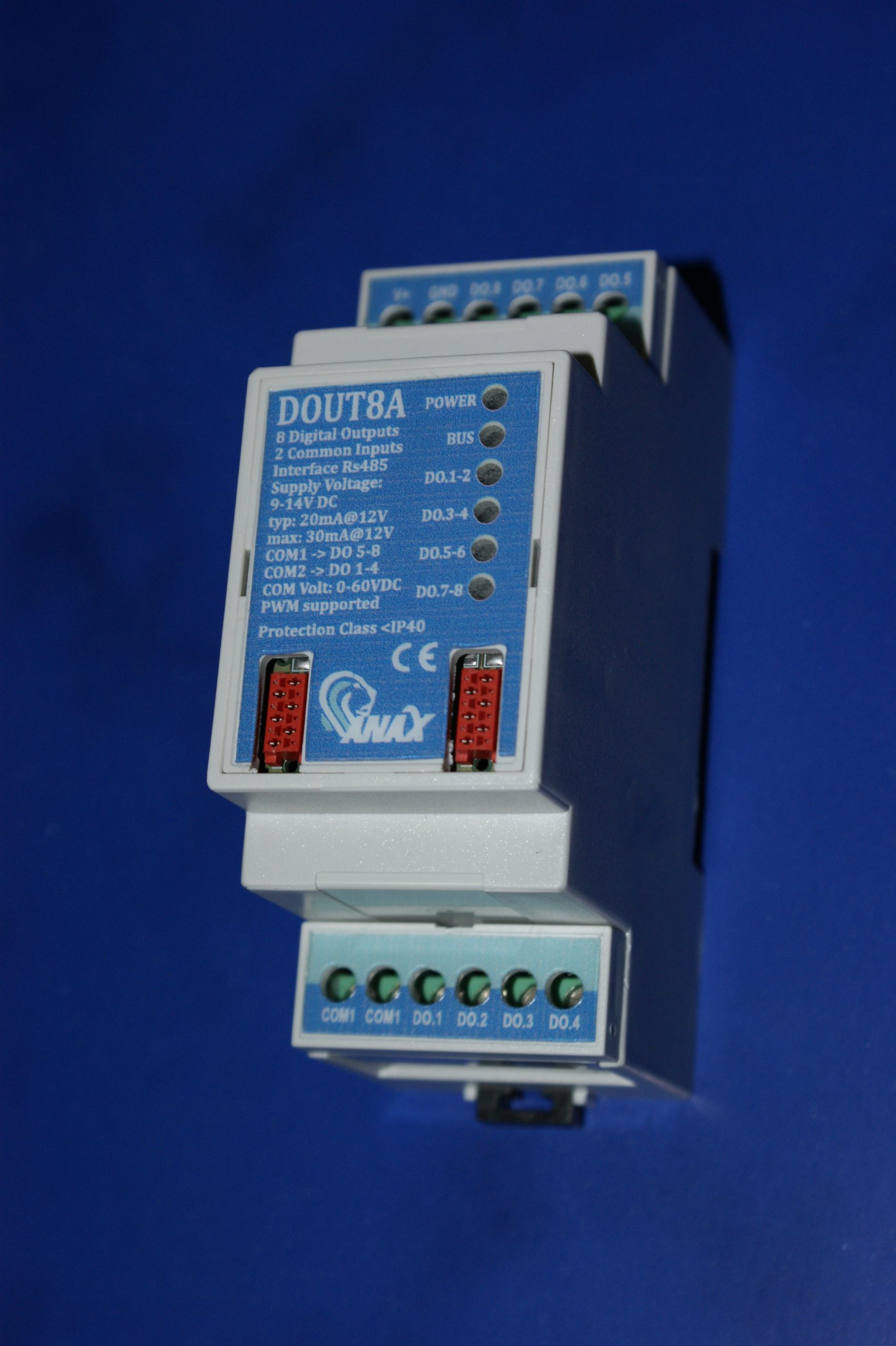

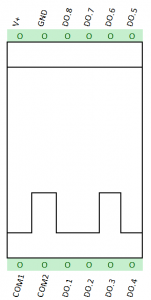

DOUT8A digital outputs module

Digital Output module, auto addressed with 8 onboard integrated Digital Outputs.

Technical Details

  • 8 On board integrated Digital Outputs
  • 2 Common Inputs
  • RS485 Interface
  • Supply Voltage: 9-14 V
    • Typ: 20mA @ 12V
    • max: 30mA @ 12V

Input Specifications:

  • COM1 refers to DO.8-5
  • COM2 refers to DO.1-4
  • COM Voltage: 0-60 VDC +/-15%
  • max 10mA @ 48 Volt per D.Output

Additional Specifications :

  • CPU: STM32F100 Arm Cortex-M3 core
  • PWM Output supported
  • 2 orange LEDs (Power, Comm.)
  • 4 green LEDs (diagnostics per 2 outputs)

Housing :

  • Dimensions (WxHxD): 36 x 90 x 58 mm
  • Material: Plastic
  • Mounting: on standard mounting DIN rail EN 60715 TH35
  • Protection Class: <IP40
  • Connection : removable spring terminals
  • Mounting position : Optional

Description :

DOUT8A is a fast Digital Output switching module with 8 integrated Outputs. It brings two COM isolated connection Inputs, that can be powered from external power supply up to 60VDC. The same input Voltage applied to each COM is driven to the corresponding output where the COM refers to. When no additional power supply is used, a connection has to be made with the V+ connection. The fast switching outputs may be used for PWM signal generation with custom Amplitude and Duty Cycle.
